Welded Razor Wire Mesh
Welded Razor Wire Mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll form for transport. Razor wire mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.This razor wire security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance.Welded Razor Mesh is the straight razor wire be welded together and be designed as diamond or oblique square pattern mesh fence used to protect commercial, industrial and government institutions. The product is virtually impossible to climb or cut with standard tools. Though it acts as an entrapment, yet has a neat appearance. Diamond mesh size : 75x150mm, 100x200mm, 150x300mm.Oblique Square mesh size : 150mm, 200mm, 300mm,The width and length could be produced as per the customers’ requirement.
 |
 |
 |
Galvanized Welded Razor Wire Mesh |

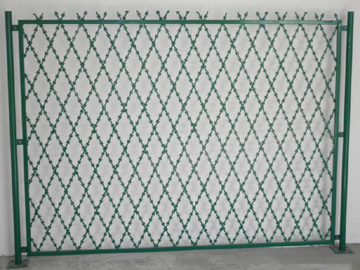

PVC Coating Welded Razor Wire Mesh |

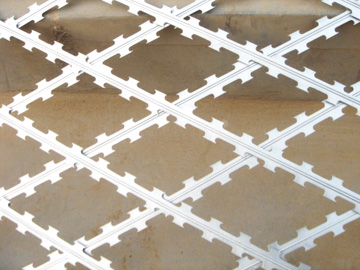

Stainless Steel Welded Razor Wire Mesh |
Model |
Thickness |
Wire Dia |
Length |
Width |
spacing |
BTO-10 |
0.5mm |
2.5mm |
12mm |
13mm |
26mm |
BTO-12 |
0.5mm |
2.5mm |
12mm |
15mm |
26mm |
BTO-18 |
0.5mm |
2.5mm |
18mm |
15mm |
33mm |
BTO-22 |
0.5mm |
2.5mm |
22mm |
15mm |
34mm |
BTO-28 |
0.5mm |
2.5mm |
28mm |
15mm |
34mm |
BTO-30 |
0.5mm |
2.5mm |
30mm |
18mm |
34mm |
CBT-60 |
0.6mm |
2.5mm |
60mm |
32mm |
96mm |
CBT-65 |
0.6mm |
2.5mm |
65mm |
21mm |
100mm |
Mesh |
Mesh style |
Width |
Blade Specification |
100mm×100mm |
Square, Diamond |
1.2m ~ 2.4m |
BTO-10.12.18.22.28.30, CBT-60.65 |
100mm×150mm |
Square, Diamond |
1.2m ~ 2.4m |
BTO-10.12.18.22.28.30, CBT-60.65 |
100mm×200mm |
Square, Diamond |
1.2m ~ 2.4m |
BTO-10.12.18.22.28.30, CBT-60.65 |
150mm×300mm |
Square, Diamond |
1.2m ~ 2.4m |
BTO-10.12.18.22.28.30, CBT-60.65 |
Welded Razor Wire Mesh Fence is a new form of razor barbed wire for security. With blade, this kind of razor wire fence is very practical and it looks beautiful.Razor wire mesh fence can be used as guarding fence, for doors and windows. It can also be used in military.The welded razor barbed wire is usually used together with cross type razor barbed wire, stopping your step, fighting your confidence of lucky.
