Razor tape concertina wire (also known as Barbed Tape Wire) is the modern version of barbed wire,designed to prevent intrusion Razor Tape Concertina Wire
along perimeter barriers. razor wire is fabricated from high tensile wire(virtually impossible to cut with standard tools) Razor Wire Mesh Fence
onto which a multitude of razor-sharp barbs are formed at close intervals.The barbs are designed to have a piercing Field Wire Mesh Fence
and gripping action. The wire and strip are galvanised to prevent corrosion. Originally barbed wire fulfilled the roll of Chain Link Mesh Fence
perimeter security.as crime has escalated barbed wire became less and less effective.petty thefts worsened and the Welded Wire Mesh Fence
need arose to replace barbed wire with a more effective alternative.The breakthrough came when a barbed Hexagonal Wire Netting
fashioned tape was added to a high tensile wire.This product was given the name barbed tape / razor wire! Wire Mesh Basket
  Pet Cage
Our razor concertina wire have exported to Brazil, Chile, Peru, America, Cyprus, Algeria, Namibia, Saudi Arabia, etc. Insect Screen
the weight of razor concertina wire is 5kg, 10kg, 15kg or as your requirement, common it is 10 meters or 15 meters per roll. Stainless Steel Wire Mesh
  Square Wire Mesh
Standard materials are either galvanized wire or PVC wire or stainless steel wire and galvanized sheet, stainless steel sheet. Perforated Metal Mesh
Standard packages products are weave cloth and wooden pallet, special specifications available on request. Expanded Metal Mesh
  Filter Wire Mesh
The other name are concertina coil, razor strip, razor blade wire, razor ribbon wire, ripper razor flat wrap, smart razor wire coil. Gutter Guard Mesh
  Galvanized Wire
  Black Annealed Iron Wire

NEXT
The kinds of razor tape concertina wire:
Mobile Razor Concertina Wire Security Barrier

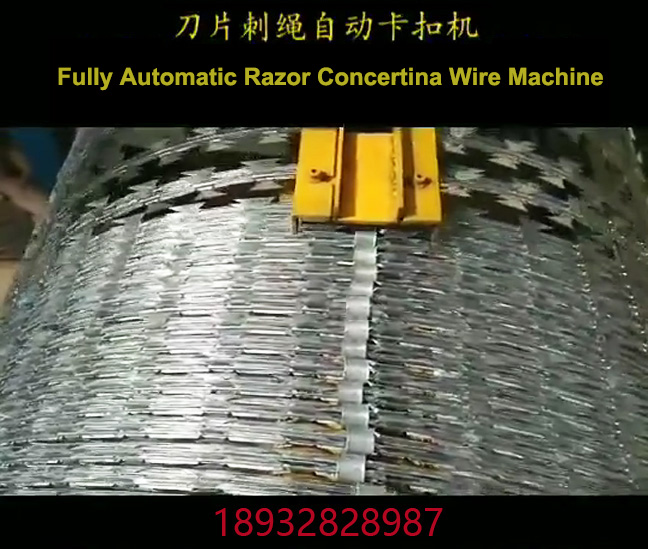

Fully Automatic Razor Concertina Wire Machine Factory
Razor Concertina Wire Machine
Fully Automatic Razor Concertina Wire Machine Factory
the kinds of razor tape wire including:
Concertina Cross Type Razor Barbed Tape Wire,two pieces of stainless steel razor wire or zinc-coated razor wire are bound
together by clips to make it stronger.The spiral intersecting barbed wire presents an intersecting shape after opening with
beautiful feature and practicality.Single Coiling Type Razor Barbed Tape Wire is installed without clips,it runs in natural loops
on walls or fencings. single coil razor wire is ostless and can be easily installed. Straight Line Type Razor Barbed Wire is
easy to be installed in many ways.straight barbed tape wire is installed quickly.it can save cost and at the same time achieve
the effect of frightening and stopping.Razor Wire Escorting Can is fabricated with coils of razor tape.effectively used in riot
control or other isolation purposes.Razor Wire Barrier,movable razor wire barriers provide convenient use in different places.
Long Blade Razor Barbed Tape CBT-65, extra long blade razors provide maximum frightening effect.Cottage and Society
Fencing Wire,sharp razor barbed tape wire mounted around brings more security effect for residents.
Reference Number
Blade Style
Thickness
Wire Dia
Barb
Length
Barb
Width
Barb
spacing
BTO-10
0.5±0.05
2.5±0.1
10±1
13±1
26±1
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-18
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
22±1
15±1
34±1
BTO-28
0.5±0.05
2.5
28
15
45±1
BTO-30
0.5±0.05
2.5
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±2
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±2
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Barbed Tape Wire Specification
Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
